Fix Cutting Machine Design File Problems: Duplicate Lines, SVG Issues, and Failed Jobs

Your cutting machine starts moving, but the blade traces the same shape twice, cuts interior lines you never intended, or begins the job again after it appears finished. The material may tear or shift even though the design looked correct on screen.

These problems often originate in the design file or the way the software interprets and sends it. Instead of changing every machine setting at once, isolate the file, confirm what the software is preparing to cut, and determine whether the job was duplicated during transfer.

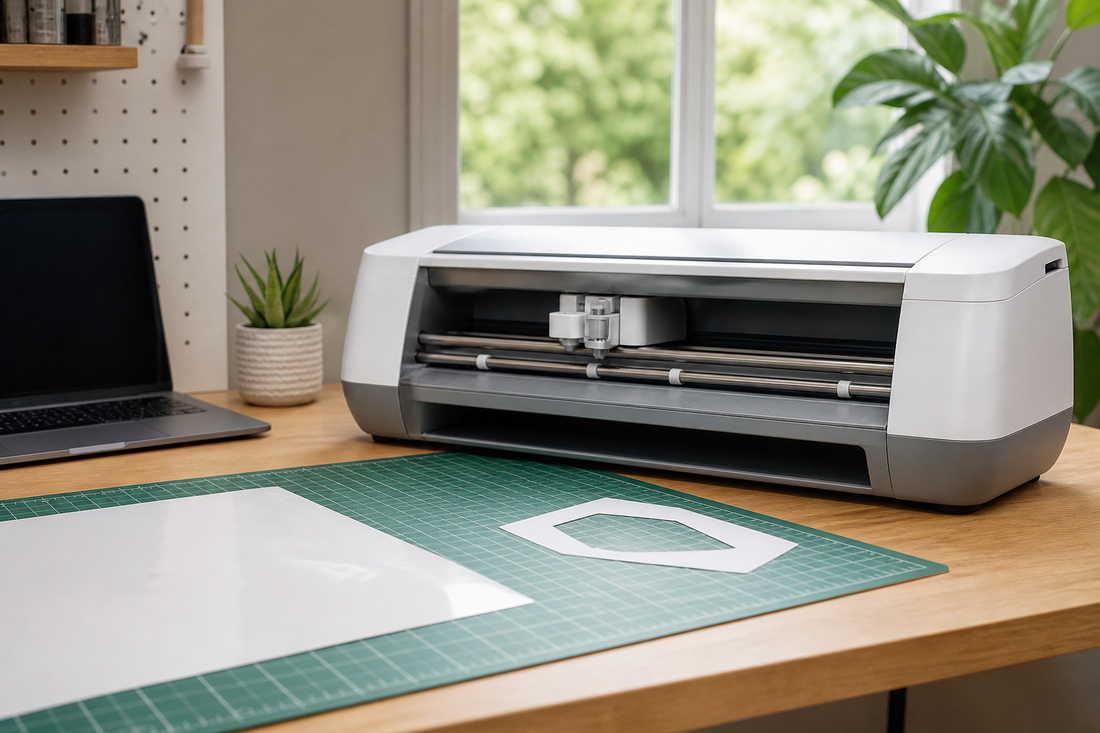

Start With a Controlled File Check

Before adjusting blade depth, pressure, or material settings, determine whether the extra motion is already present in the design file:

1. Stop the job and preserve the original file. Save a separate copy before deleting paths or changing settings. Use a clear name such as “design-test.”
2. Open the file in the design software. Zoom in where the machine made an unexpected second pass and look for stacked lines.
3. Select individual objects. If selecting once highlights one object and selecting again reveals another in the same location, overlapping or duplicate geometry may be present.
4. Inspect groups and hidden objects. Expand layers, compound paths, and hidden elements where possible. Hidden objects may still be included in the cutting output.
5. Check the cut preview. Repeated passes, unexpected interior lines, or extra shapes indicate that the issue exists before the job reaches the machine.
6. Convert text and special effects when required. Live text, strokes, shadows, and editable effects may be interpreted differently during export. Convert them only on the working copy.
7. Export a simple test file. Use one basic shape or a small section of the design. If it cuts correctly, the original file is the likely source of the problem.
8. Send the test job once. Check the job queue or transfer panel and confirm that only one job is listed.

This process separates repeated geometry, preview or setting problems, and transfer issues. Treating them as one fault can lead to unnecessary machine adjustments.

Prioritize the File Before Changing Machine Settings

First, remove uncertainty from the design. Duplicate paths and unintended overlaps can cause repeated blade travel even when the cutter is working normally. Clean the geometry, confirm the preview, and test a small section before changing physical settings.

Next, consider software compatibility. An SVG, DXF, or other design file may look correct in one application but produce extra strokes, open contours, or missing elements after import. Re-saving in a format supported by the cutting software may resolve the mismatch, although it can flatten editable features or alter the design.

Finally, control the transfer. Resending can help after a confirmed communication failure, but it is risky when the machine has already received or partly completed the first job. Restart only after confirming that the first job did not reach the machine or was explicitly canceled.

A practical order is:

• Clean and simplify the file.
• Verify the preview and cut settings.
• Send a small test once.
• Resend only after checking the first job’s status.

If the machine still produces incomplete cuts, tearing, or misalignment after this process, consult the broader cutting machine troubleshooting guide to investigate material handling and machine-side causes.

A Clean-Looking Design Is Not Always a Single Cut Path

Misconception: If two lines are visually indistinguishable on the canvas, the software will treat them as one line.

Clarification: A design can contain multiple objects at the same coordinates. The screen may show one dark line, but the cutter can receive both paths and travel over the location repeatedly. This can happen when a stroke is converted to an outline while the original stroke remains underneath, or when a shape is duplicated during copy-and-paste.

Overlapping lines are different from intentional intersections. Two shapes may cross because the design requires it, while duplicate paths add no visible design value. The goal is to remove redundant geometry without damaging legitimate crossings.

Select the line, move it slightly, and see whether another line remains beneath it. If the software offers node editing, inspect whether one object contains repeated or doubled contours. Then use the preview to confirm that the corrected design produces only the intended routes.

Do not assume that “weld,” “union,” or “merge” always solves the problem. Their results depend on whether the objects are fills, strokes, open paths, or compound forms. Apply these operations to a copy and inspect the outline afterward.

Do This Before You Resend a Failed Job

Do: check the queue, confirm the machine’s status, and cancel or clear the original job when the software shows that it is still pending.

Do not: press send repeatedly because the machine appears quiet. A delay in the interface does not prove that the first job failed, and a second transmission can duplicate the cut.

If a job stops partway through, note where the interruption occurred and save the file before retrying. A small test on scrap material is safer than immediately running the entire design again.

How File Structure Creates Unexpected Cutting Behavior

Cutting software does not work from the appearance of a design alone. It converts objects into paths, assigns operations to them, and sends instructions based on the file structure and available settings. Many “the design looked fine” problems begin during this conversion.

A duplicate path produces two sets of movement instructions. If the blade is lowered for both passes, the second pass can deepen the cut or increase the chance that the material shifts. The software may simply be following two objects that occupy the same space.

Strokes can create a related issue. A visible line may be stored as a stroke while an outlined version is stored as a separate filled object. Both may appear to represent one border, but the cutter can interpret them as separate contours. Inspect the object type and remove the redundant version instead of repeatedly changing cut pressure.

Unsupported or partially supported features add uncertainty. Gradients, masks, live offsets, clipping arrangements, and editable text may not translate into clean cutting paths. The result can be a missing shape, an unexpected outline, or several paths where the design contained one visual object. Simplifying the file before export reduces these interpretations.

File naming also matters. A folder containing “final,” “final2,” and “final-revised” files makes it easy to send an older version. Use names that identify the intended output and revision, then open the exact file in the cutting software before sending it.

Choose the Right Correction for the Failure You See

Different symptoms call for different corrections. This comparison can help prevent overcorrecting the machine when the issue is confined to the file or transfer process.

Changing file format can improve compatibility, but it is not automatically better. A simpler file may import more predictably while losing editable layers or effects. Keep the original and a prepared cutting copy so you retain flexibility and a repeatable output version.

Build a File-Preparation Routine That Prevents Repeat Errors

Repeated file problems usually have a process cause: designs are exported without a final path inspection, revisions are unclear, or jobs are resent without checking their status. The result is wasted material and uncertainty about which change fixed the issue.

Create a short preflight routine for every design. Inspect layers and hidden objects, check for duplicate paths, convert only what needs conversion, review the cut preview, and save the prepared version separately. Run a small test when the file is new, imported from another program, or significantly edited.

Use one deliberate send action and watch for confirmation from the software. If the interface becomes unresponsive, wait for a clear status change or cancel the job before trying again. Change one variable at a time—file geometry, export format, setting, or transfer—so the result remains understandable.

A clean file, visible preview, and controlled send routine turn cutting-machine troubleshooting from guesswork into a repeatable check.
